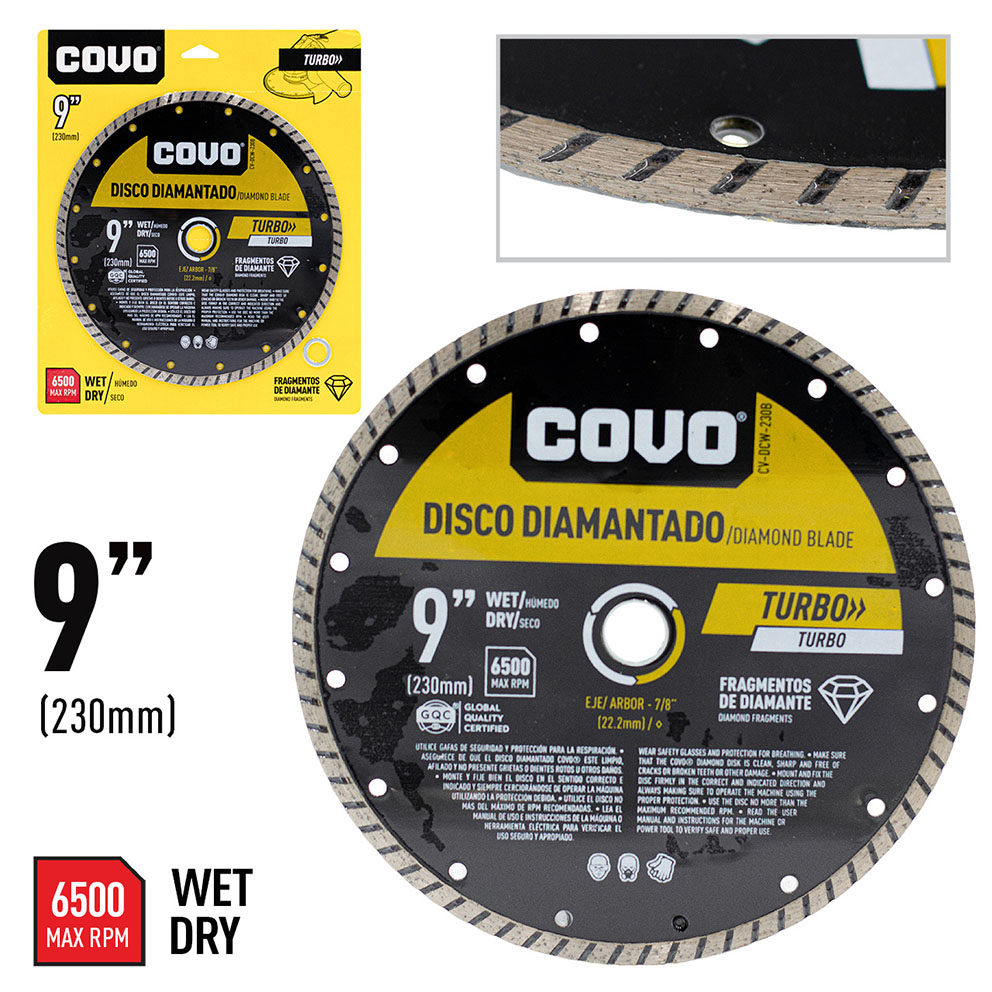

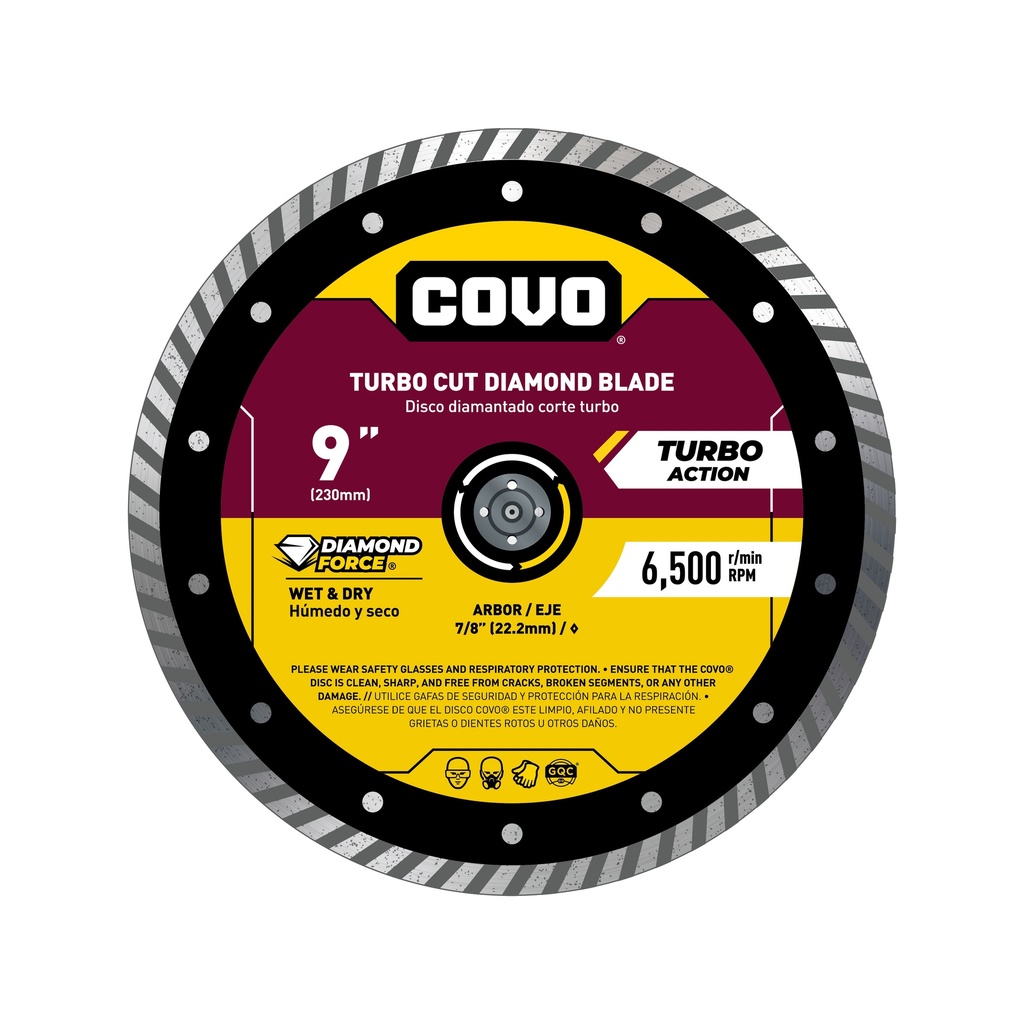

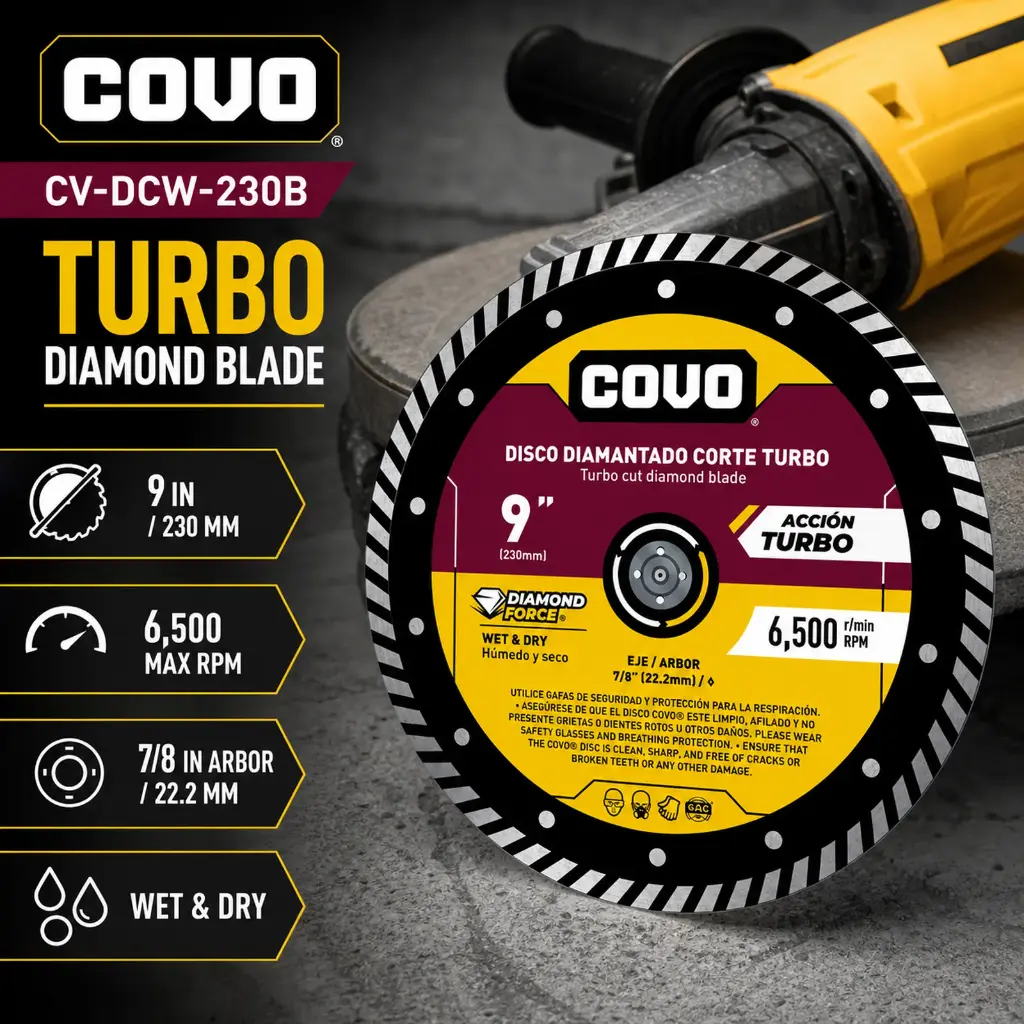

Product Specifications
Specification | Details |
Diameter | 230mm / 9" |

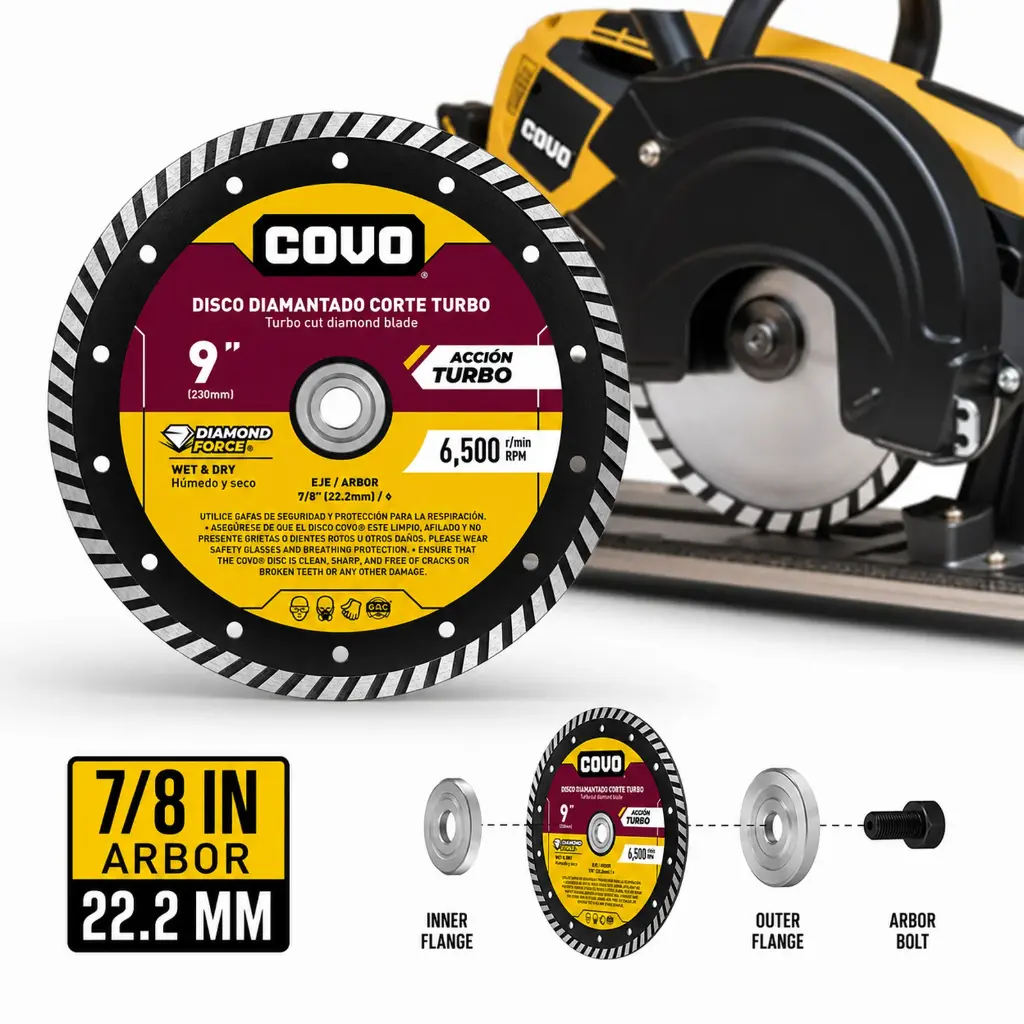

Bore Size | 22.2mm / 7/8" |
Segment Height | 7mm / 9/32" |
Segment Thickness | 2.8mm / 7/64" |
Max. Safe Speed | 6,500 RPM |
Cutting Method | Wet Cutting |
Adapter Rings | 20mm / 5/8"+16mm / 3/4" |
Suitable Materials
Compatible Machines
Application
Safety Instructions
Eye protection
Please wear safety glasses
Hand Protection
Please wear protective gloves
Proper Disposal
Dispose of damaged or worn blades safely
Respiratory Protection
Please wear face respiratory mask
Frequently Asked Questions

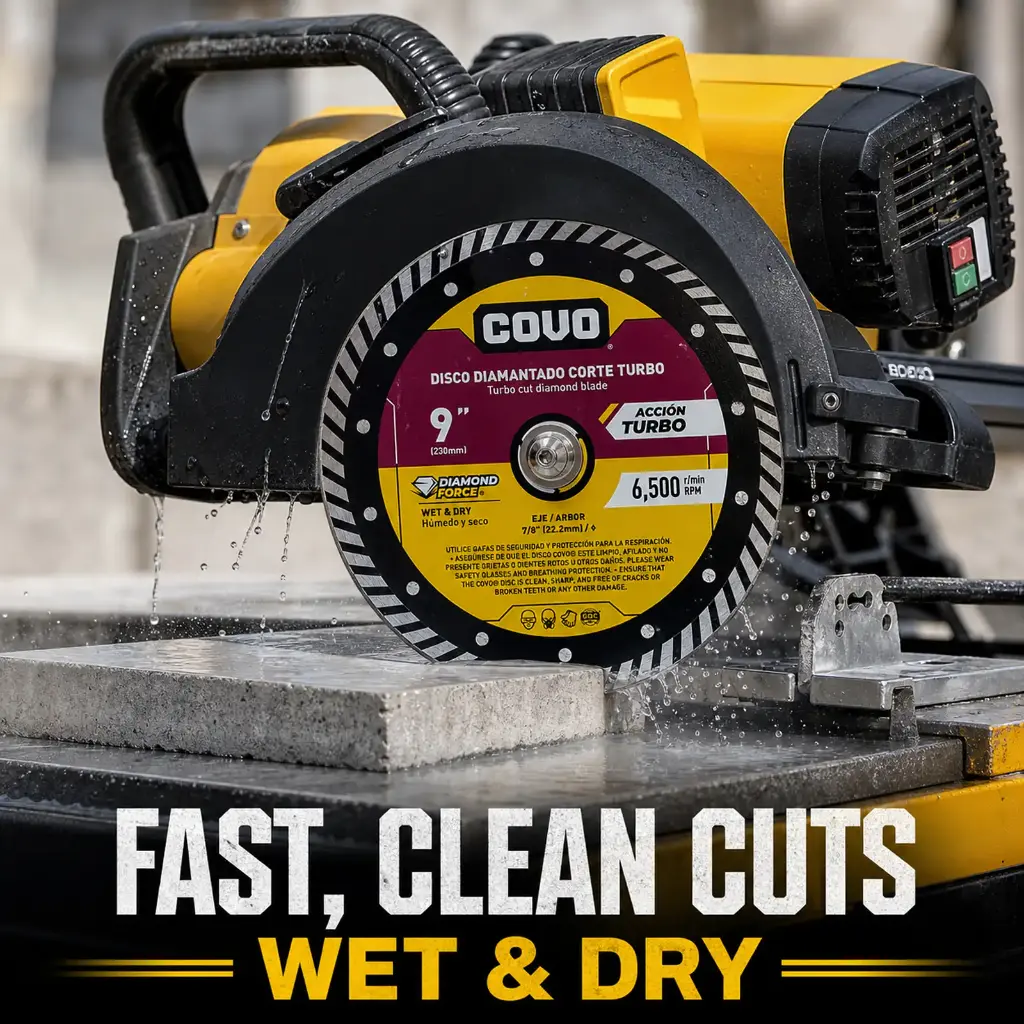

A: Yes, this blade is designed for both wet and dry cutting. The turbo rim's gullets allow good performance in either mode, but each has its best use:
| Cutting Mode | Advantages | Disadvantages / Precautions |
|---|---|---|

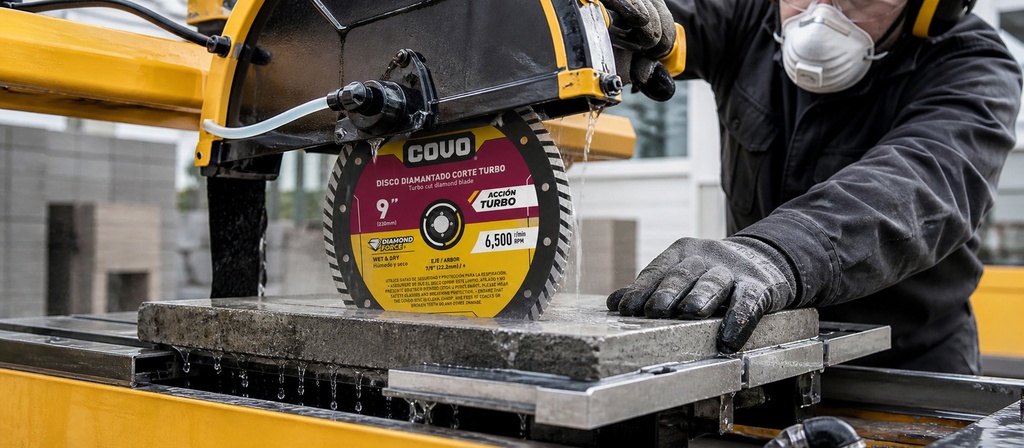

| Wet | Best cooling, longest blade life (2–3× longer); excellent dust suppression, meets environmental standards; stable cutting speed | Requires water supply and water‑cooled equipment; slightly more setup |

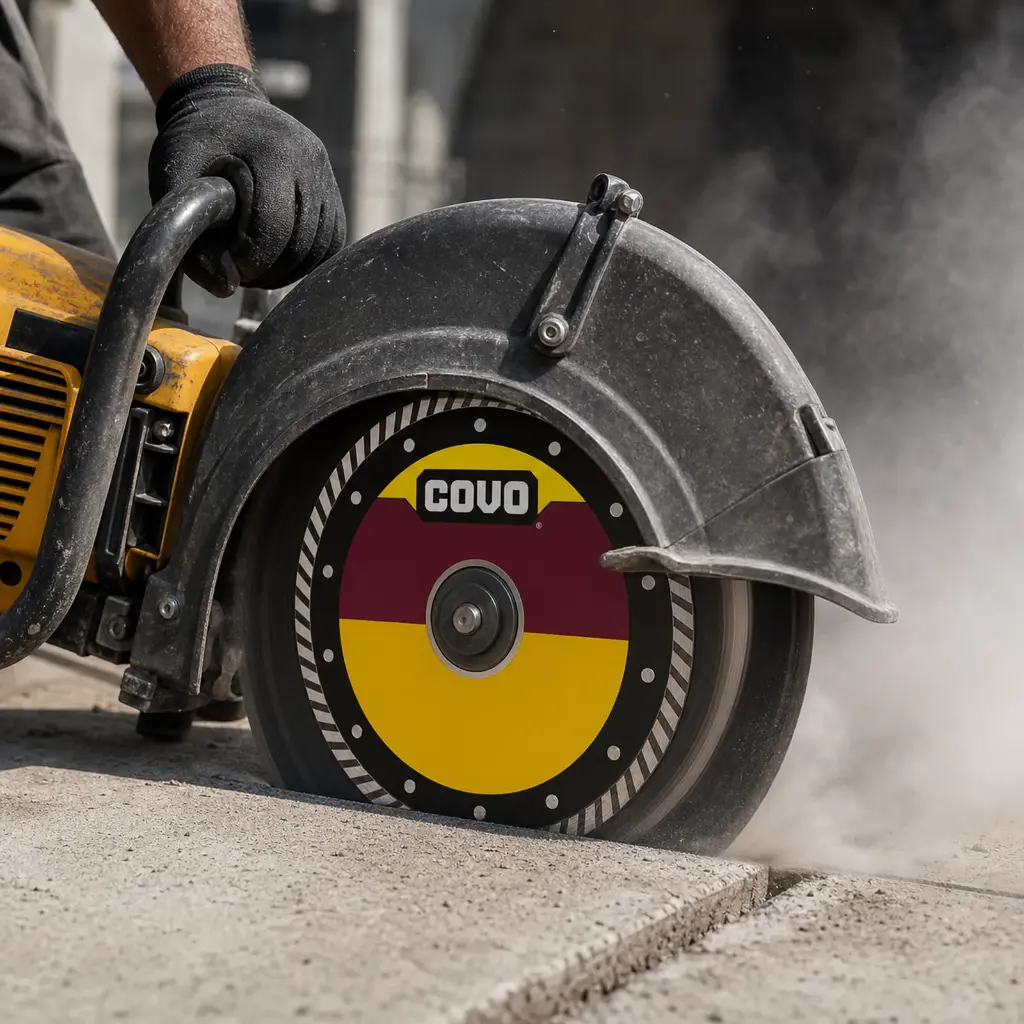

| Dry | Convenient and portable, no water needed – ideal for mobile work or occasional cuts; turbo design dissipates heat well for short dry runs | Continuous dry cutting must be limited (recommend ≤ 15–20 sec per pass, then free‑spin cool); more dust, wear a dust mask |
Choice guide:
- High‑volume continuous work (e.g., large‑area floor grooving) → prefer wet cutting to protect the blade and boost efficiency.
- Remote sites or small repairs → dry cutting is fine, just use the intermittent technique.

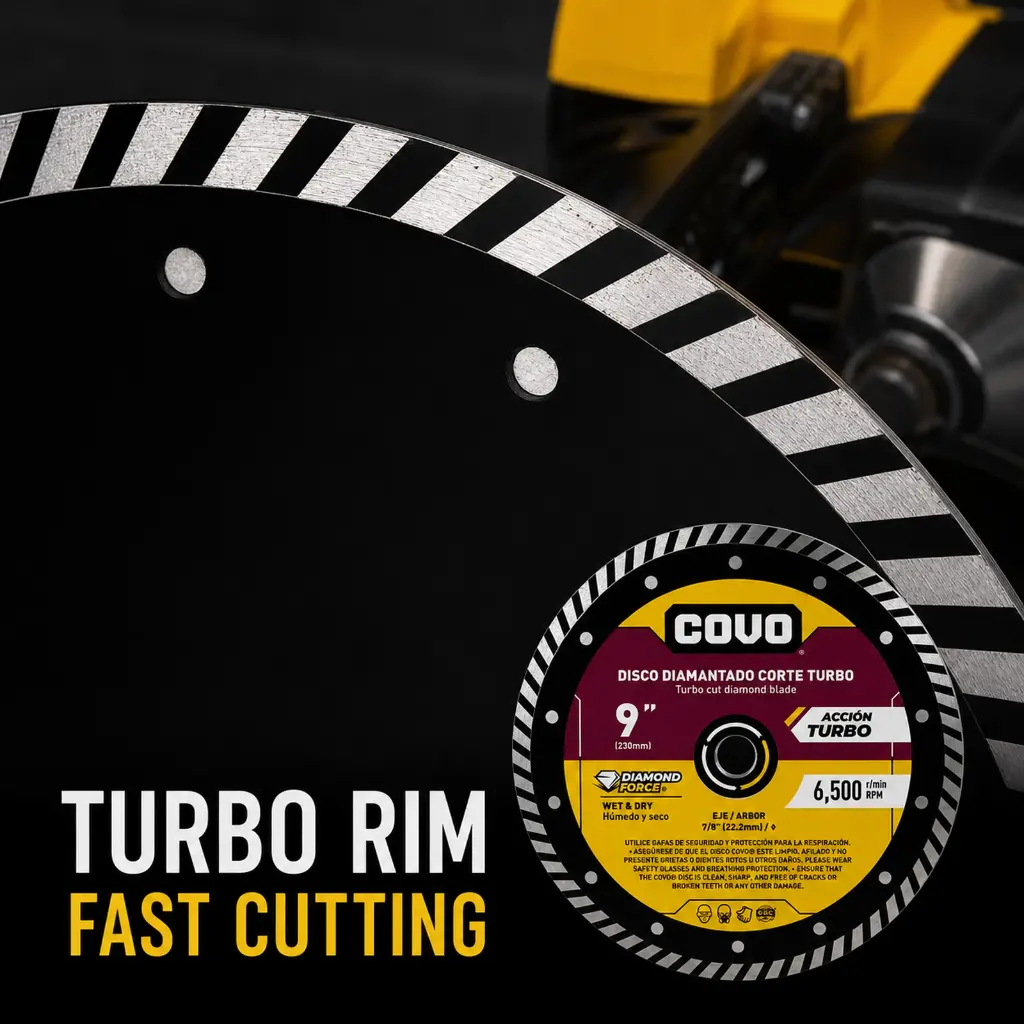

The coarse turbo rim helps provide faster cutting, efficient debris removal, and better cooling during operation. It is especially suitable for rough concrete cutting where speed and durability are more important than an ultra-smooth finish.

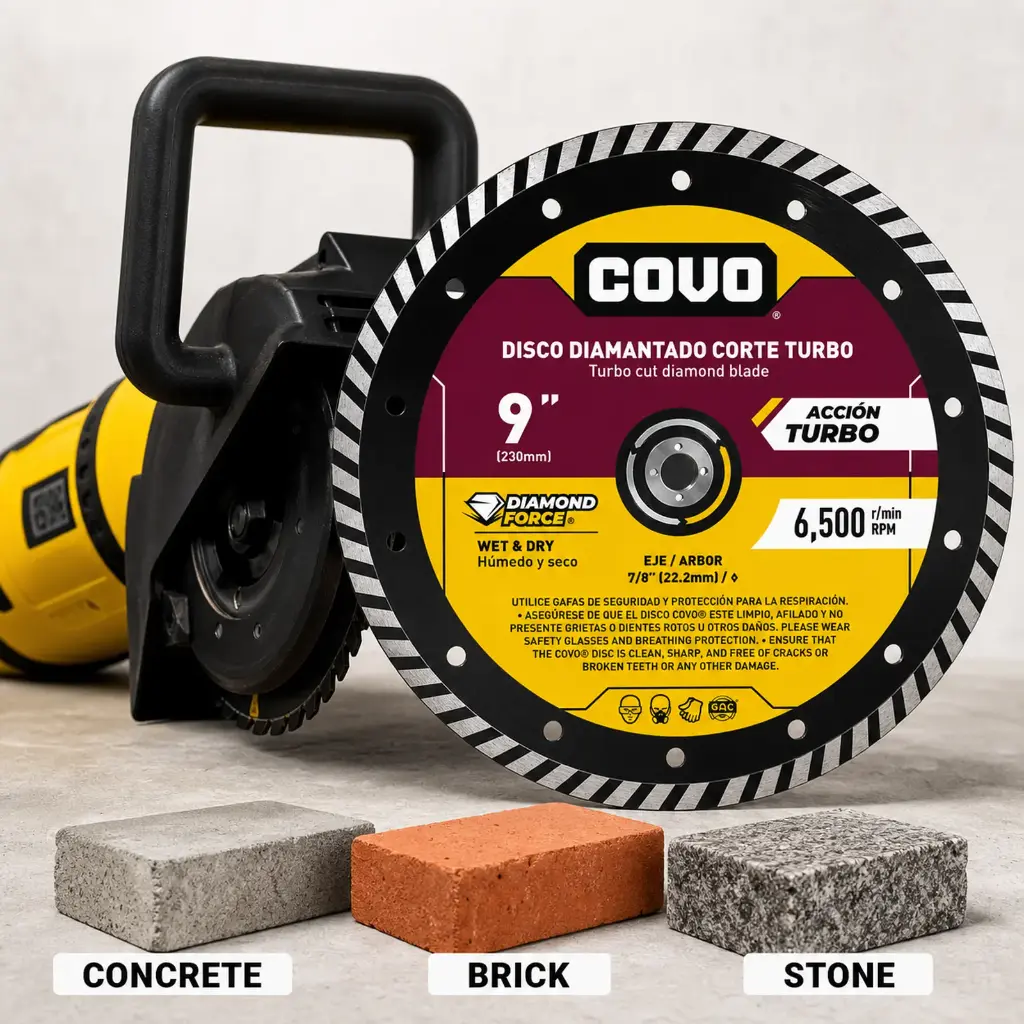

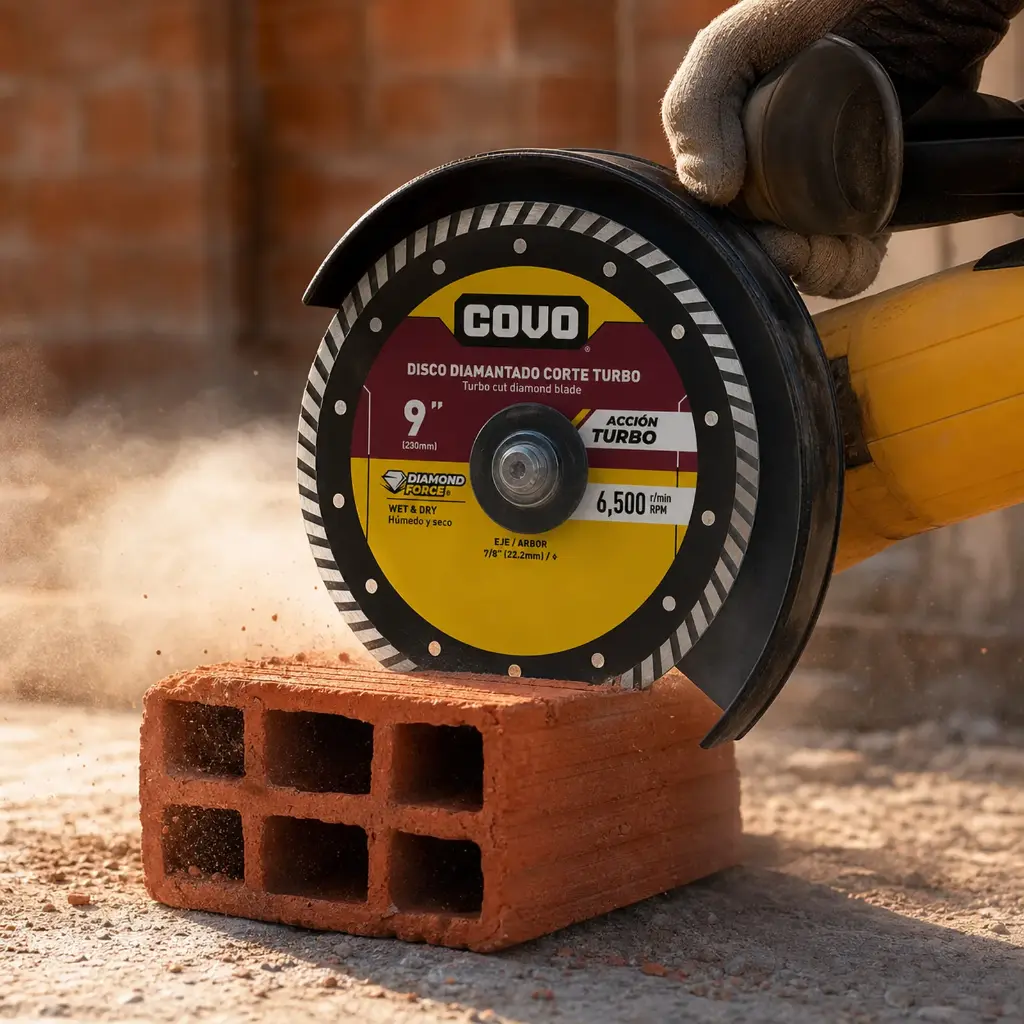

This turbo diamond blade is designed for cutting rough concrete, brick, block, masonry, and other construction materials. It is suitable for both professional jobsite use and general construction applications.
